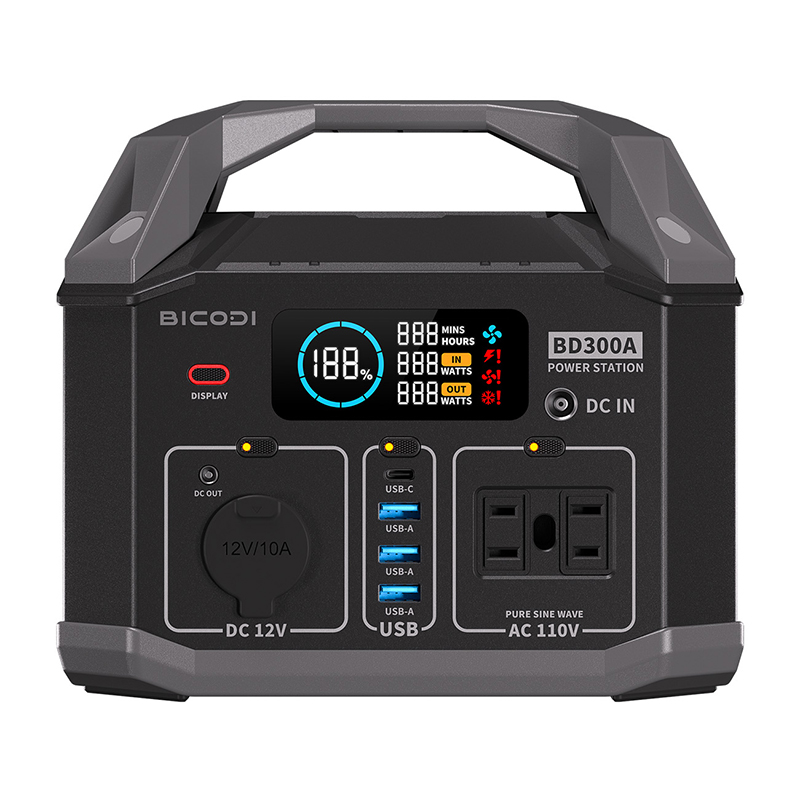

BD-300A

Short Description:

The BD-300A portable power station was born out of the ultimate innovation and cutting-edge technology. It supports a maximum peak output of 500 watts and a rated power of 300 watts. It is small and delicate and can be an indispensable power supply during travel.

Sketch

Massive 299.52Wh capacity and 500W surge peak
The ultra-stable 18650 Li-ion NMC battery chemistry, 800+ life cycles
2*110V-230V AC outlets, 1*60W PD ports, 2*5V/3A USB-A ports, 2*regulated 12V/10A DC outputs, 1*12V/10A car port,1*18W QC3.0 quick charging.
With max input of 100W, this power station can be fully recharged in 3-4 hrs with solar panels (OCV 12-30V, 100W)
It can also get fully recharged from an AC wall outlet in 3-4 hrs or a 12V car port in 3-4 hrs.

Basic Parameters

Name : BD-300A
Rated Power : 300W
Standard Capacity : 18650 Lithium-ion Battery 3.6V 2600mAh 4S8P
Output Waveform : Pure Sine Wave

Send email to us Datasheet Download

Product Detail

Product Tags

DESCRIPTION

MULTIFUNCTIONAL OUTPUTS

1.The AC output of the camping battery has been upgraded to 110V/330W(Peak 300W).

2.It features 3* USB-A ports, and 1*Type-C and DC carport to power many types of equipment such as phones, laptops, lights, fans, mini coolers, and so on with a pure sine wave

3.12V DC Ports: DC 12V/5A and Car charger (12V/24V，100W Max)

PD 60W

30min

80%

USB 18W

30min

50%

USB 12W

30min

30%

FASTER USB OUTPUTS

The BD-300A comes with a large number of output interfaces, which can meet people's electricity demand when traveling.

Notepad

60W

About 5 Recharges

Camera

16W

About 18 Recharges

Car Output

65W

About 4.5 Hours

Projector

100W

About 3 Hours

kettle

800W

About 1 Recharges

Iphone 12

2850mAh

About 30 Recharges

PRODUCTS DESCRIPTION

Charging more devices at the same time-faster More Efficient 3*QC3.0 USB 1*type-C Port

Product Name	300W portable power station-- 80000mAh Solar Generator Camping Lithium Battery Emergency Portable Power Station With DC AC USB output
Rated Power	300W
Peak Power	500W
Rated Capacity	299.52Wh
Standard Capacity	3.6V 2600mAh 4S8P
Cell Type	18650 lithium-ion battery 3.6V 2600mAh 4S8P
Nominal Voltage	14.4V
BMS Function	a.Over voltage protection b.Low voltage protection c.Discharge over current protection d.Short circuit protection e.Charge over current protection f.Temperature protection
Overload Protection	360±20W
Overcharge Protection	yes
Input Port	1 x Wall charger (DC 24V/3A，72W) DC adapter1 x Car charger (12V/24V，100W) 1 x Solar Panels Charger (MPPT，10V～30V) 1 x Type-c PD 60W Max ( 5V/9V/12V/15V/20V,3A Max)
Output Port	1 x USB-A(QC3.0) 18W2 x USB-A 12W 1 x TPYE-C PD 60W 1 x Car port 120W 2 x 5521DC 120W 2 x AC Sine Wave 90-230V 300W Max（Optional） 1 x Flash light 3W/SOS/
Output Waveform	Pure Sine Wave
AC Output	CN 220V-230V(300W) 60HZEU 220V-230V(300W) 60HZ UK 220V-230V(300W) 60HZ JP 100V-110V(300W) 50HZ US 100V-110V(300W) 60HZ
Cycle Life	>800 Cycles
Working Humidity	10%-90%
Working Temperature	-20℃-60℃
Case Material	ABS
LED Light	5W
Display	Super Brightness LED Panel
Additional Features	N/A
Cooling Function	Intelligent Cooling system
Color Customization	Support
Appendix	Brown Paper and Yellow BoxThe Charger Car Charger Cable Solar charging Wire User Guide
Certificate	CE/PSE/FCC/ROHS
Net weight	3.1KG

FAQ FOR PORTABLE POWER STATION

What brand of the battery cell do you ues?

EVE, Greatpower, Lisheng… are the mian brand we ues. As the shortage of cell market, we usually adopt the cell brand flexibly to ensure the delivery time of customer orders.
What we can promise to our customers is we ONLY use grade A 100% original new cellls.

How many year of your battery's warranty?

All of our business partner can enjoy the longest warranty 10 years!

Which inverter brands are compatible with your batteries?

Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye, Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect...

How do you offer after-sales service to solve product problem？

We have professional engineers to provide technical service remotely. If our engineer diagnoses that the product parts or batteries are broken, we will provide a new part or battery to the customer free of charge immediately.

What certificates do you have?

Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3, MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.
