BD-1200A

Short Description:

BD-1200A is a portable power backup, suitable for home emergency protection, outdoor travel, disaster relief, field operations and other applications. The BD-1200wp10 has a built-in lithium battery. The battery is made up of 7 strings of metal-lithium batteries. Wind is 2 2. 4Vdc (7*3.2V), with inverter AC output, output 220V (50/60Hz) pure sine wave, with AC input, MPPT solar input. It has multiple DC output ports USB QC3.0 and TYPE-C, cigarette lighter and other interfaces.


Basic Parameters:


  • Name: BD-1200A
  • Rated Power: 1200W
  • Peak power: 2000W
  • Battery Capacity: 1075Wh
  • Battery Cell: LIFEPO4 Lithium Battery 3.2V 24Ah 7S2P
  • Product Detail

    PRODUCTS DESCRIPTION

    Product Tags

    DESCRIPTION

    MULTIFUNCTIONAL OUTPUTS

    1.The rated output current of USB-A*3 output port is 3.37A, TYPE-C*3 is 3.0A, and it supports short-circuit protection.

    2.Ripple output of cigarette lighter is about 500Mv. If the output is short-circuited, the output turns off automatically. DC fingering icon is disabled.

    3.AC * 4 The rated output power of the AC output port is 1200w, it supports AC charging and discharging at the same time, and the charging power is about 260W.

    BD-1200A

    PD 65W

    30min

    80%

    80%

    USB 18W

    30min

    50%

    60

    USB 12W

    30min

    30%

    40

    CUSTOMIZED SOCKET

    CN

    CN

    EU

    EU

    UK

    UK

    US

    US/JP

    Multiple Output Interfaces

    BD-1200A is equipped with a rich output space, allowing you to easily use various electronic devices in outdoor activities.

    compan

    Notepad

    60W

    About 5 Recharges
    q5

    Camera

    16W

    At Least 18 Times Charging
    q1

    Motor Output

    65W

    About 4.5 Hours
    q4

    Projector

    100W

    About 3 Hours
    q2

    kettle

    300W

    Charge At Least Once
    q3

    Iphone 12

    2850mAh

    Charging Up To 30 Times

    WHAT OUR PRODUCTS CAN DO

    Portable Power Stations were designed for using in variousenvironments and with multiple applications, whenever, wherever!

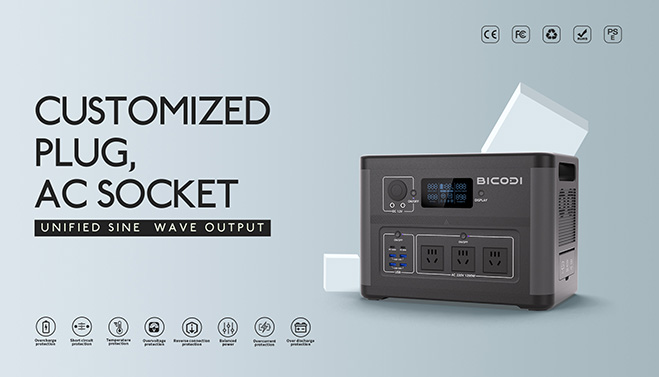

    BD-1200A Portable Power Stations

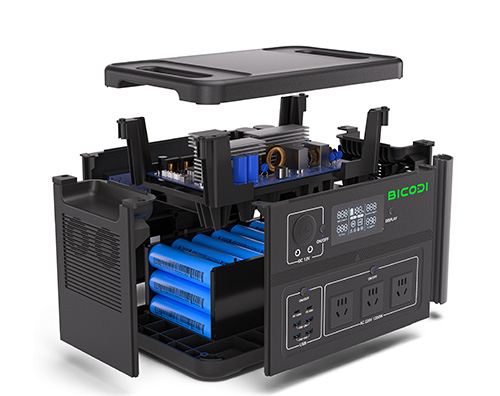

    BD-1200A internal structure

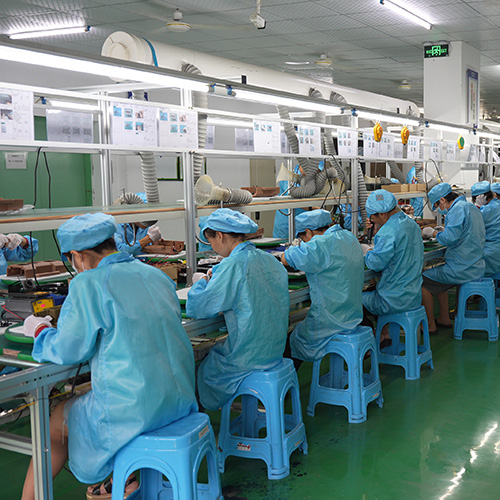

    BD-1200A Production workers

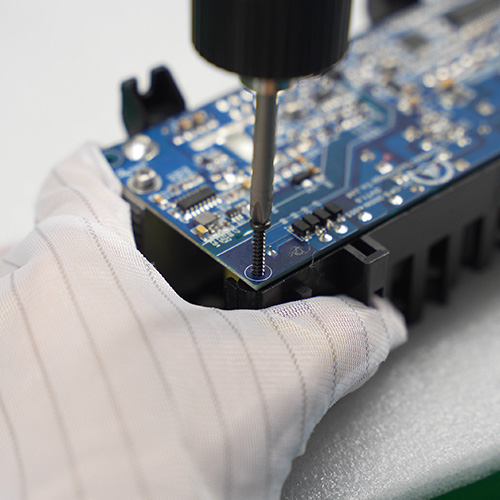

    BD-1200A bms install

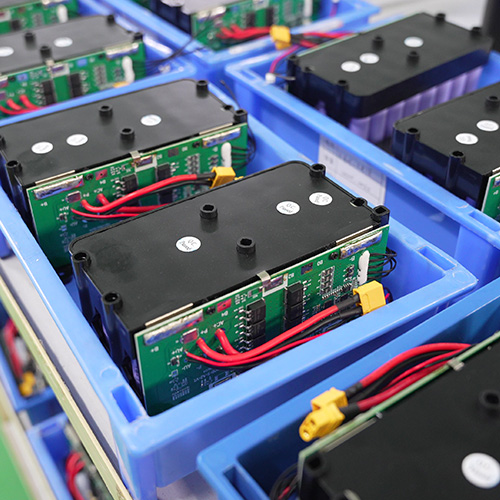

    BD-1200A Workshop

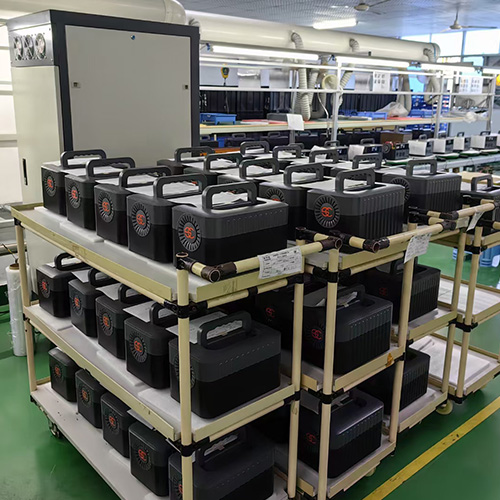

    BD-1200A Workshop2

    FAQ FOR PORTABLE POWER STATION

    What brand of the battery cell do you use?

    EVE, Greatpower, Lisheng… are the mian brand we ues. As the shortage of cell market, we usually adopt the cell brand flexibly to ensure the delivery time of customer orders.
    What we can promise to our customers is we ONLY use grade A 100% original new cellls.

    How many year of your battery's warranty?

    All of our business partner can enjoy the longest warranty 10 years!

    Which inverter brands are compatible with your batteries?

    Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye, Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect...

    How do you offer after-sales service to solve product problem?

    We have professional engineers to provide technical service remotely. If our engineer diagnoses that the product parts or batteries are broken, we will provide a new part or battery to the customer free of charge immediately.

    What certificates do you have?

    Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3, MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.


  • Previous:
  • Next:

  • Product Name Emergency portable outdoor power stations 1200w
    Cytochemistry Lifepo4
    Capacity 1200WH
    input Car charger 12V charging current 10A)
    Solar Panels Charger (MPPT, 400max)
    ac charging conversion efficiency 85%
    output USB-A*3 rated output current3.37A
    The cigarette lighter is rated for output current of 7.8A
    TYPE-C *3 rated output current 3.0A
    Dimensions 345*20*90mm
    Case Material ABS
    Net weight 13.2kg
    Certifications CE,RoHS,FCC,UN38.3
    Warranty 3year
    Operating Usage Temperature -20°C~60°C
    Lifecycle 2000les to 80%+ capacity
