OEM 12V/24V 200ah lithium/lifepo4 box Battery Pack Manufacturer

Short Description:

BD-12-200 is a lithium iron phosphate battery pack, which is an improvement based on the shell of lead-acid batteries and adopts a 4-series integrated design. It uses single large-capacity square cells and has a cycle life of over 6000 times. It has a wide range of applications in fields such as solar energy storage systems and electric vehicles, providing reliable and long-lasting power for these applications.

Basic Parameters


  • Model No: BD12-200
  • Battery Type: LifePO4 Battery
  • Voltage: 12.8V
  • Capacity: 200Ah
  • Warranty: 5-Years
  • Product Detail

    PARAMETERS

    Product Tags

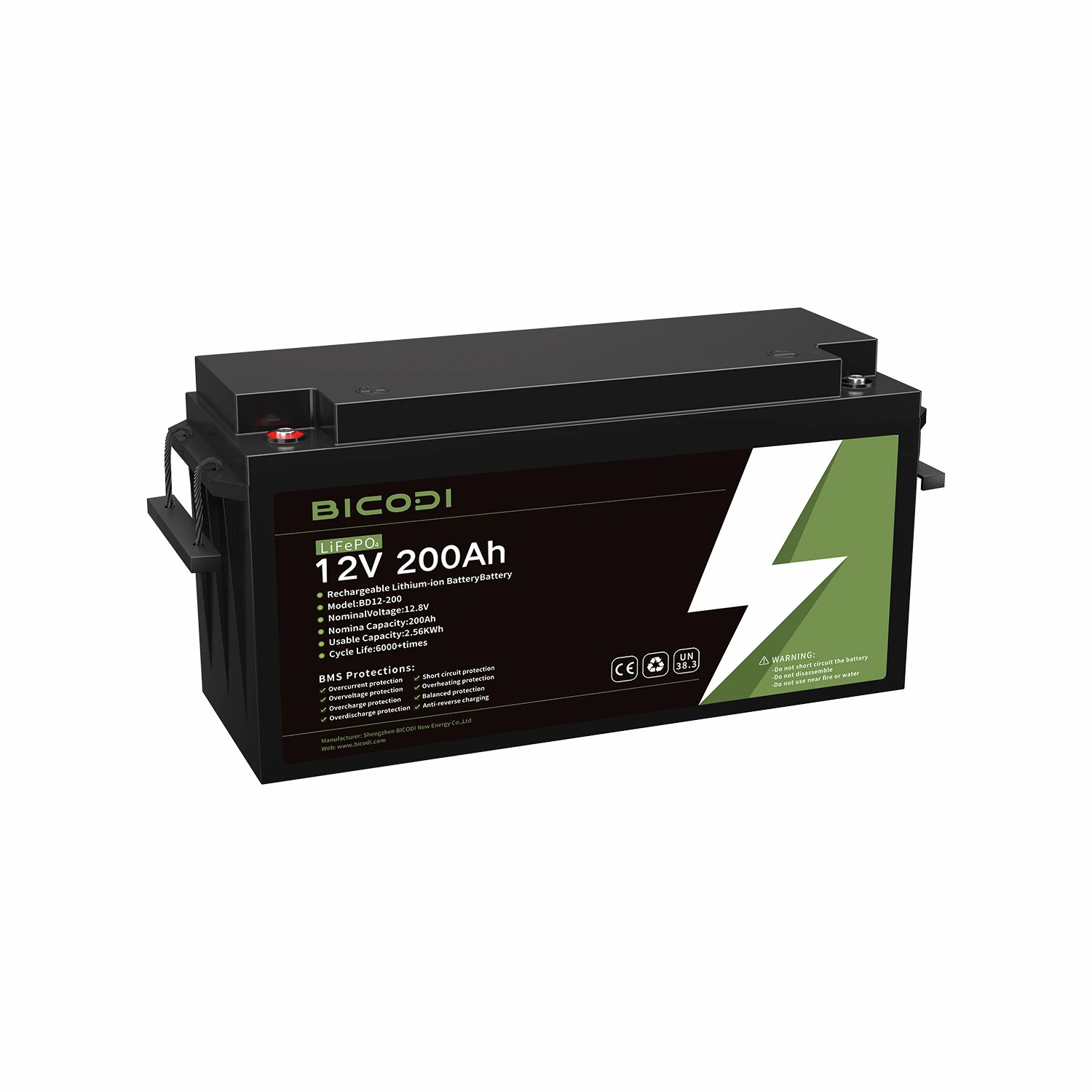

    LiFePO4 12V 200Ah Battery Pack

    Product Introduction

    1. Long Lifespan: Featuring phosphate iron lithium as the cathode material, this battery offers a longer cycle life and lower energy degradation, providing stable energy output continuously;

    2. Safe and Reliable: Equipped with high-quality battery management systems and design, it ensures safety against burning and explosion under high temperatures;

    3. High-Temperature Performance: Strong adaptability to temperature fluctuations, maintaining excellent performance even in high-temperature environments;

    4. Fast Charging: Supports fast charging, quickly refilling energy in a short period, providing a convenient and efficient solution;

    5. Lightweight: Manufactured with lightweight materials, it's more portable and easier to install compared to traditional lead-acid batteries;

    6. Low Maintenance Cost: With a long lifespan and stable operation, the maintenance and replacement cost is greatly reduced, saving you more expenses.

    lithium battery BD12-200

    PRODUCT HIGHLIGHTS

    5 Years

    Quality guarantee

    Built in BMS

    Eight major battery protection

    Single cell

    More stable and longer lifespan

    Lithium Battery

    cycle life

    FAQ FOR PORTABLE POWER STATION

    What is the cycle life of the phosphate iron lithium battery you offer?

    Under normal operating conditions, our phosphate iron lithium battery can achieve a cycle life of over 2000 times, far exceeding traditional lead-acid batteries.

    Is this battery suitable for outdoor use?

    Yes, our phosphate iron lithium battery has high-temperature adaptability and strong environmental resistance, making it very suitable for outdoor use.

    Does this battery support fast charging? How long does it take to fully charge?

    Our phosphate iron lithium battery supports fast charging, and the charging time depends on the charger's power and the remaining battery power. Typically, it can be fully charged in 2-4 hours.

    How safe is this battery in a home energy storage system?

    Our phosphate iron lithium battery is equipped with a high-quality battery management system, which prevents overcharging, over-discharging, and short circuits, providing very reliable safety performance.

    What is the maintenance cost of this phosphate iron lithium battery compared to lead-acid batteries?

    Due to the longer cycle life and lower energy degradation of phosphate iron lithium batteries compared to traditional lead-acid batteries, the maintenance cost is lower, saving users more expenses.


  • Previous:
  • Next:

  • Model No: BD12-200
    Battery Type Lithium
    cell CBA54173200EES206Ah
    net weight 20kg
    gross weight 22kg
    size 483*170*240
    Package size 535*220*295
    protection grade IP65
    warranty Protection board for 1 year, with a 5-year warranty for the entire machine
    cell performance parameter
    cell capacity 2.56kWh
    available capacity 2.5kWh
    DOD 95%以上
    rated voltage 12.8V
    Operating voltage range 10 V~14.6V
    internal resistance <15mΩ
    cycle life 6000cls
    Operating mode
    Standard Charge & Discharge Current 100A
    Max Charging & Discharging Current 200A
    Discharge temperature range -20~60℃
    Storage Humidity ≤85%RH
    BATTERY MANAGEMENT SYSTEM
    energy consumption ≤100uA
    monitored parameters Battery voltage, charging current, discharge current, charging temperature, discharge temperature, MOS temperature, pressure difference
    Protection function Overcharge protection, over discharge protection, charging overcurrent protection, discharge overcurrent protection, short circuit protection, charging high and low temperature protection, discharge high and low temperature protection, MOS high temperature protection, balance
    Maximum number of series connections 4
    Cooling method natural cooling
    safety certification UN38.3、MSDS、CE、CE、IEC62619
    parts list 2 copper noses, 2 screws
