Short Description:

BD24-100 is a compact and high-energy-density phosphate iron lithium battery with a capacity of 2.4kWh. Strictly tested, its lifespan exceeds 6000 cycles of charging and discharging, making it an excellent choice for applications such as home energy storage systems, commercial energy storage systems, and solar energy storage systems. BD24-100 supports unlimited serial and parallel connections, offering users greater flexibility and convenience. Whether used as part of an independent energy system or integrated with existing systems, BD24-100 provides a reliable and long-lasting energy storage solution.

Basic Parameters

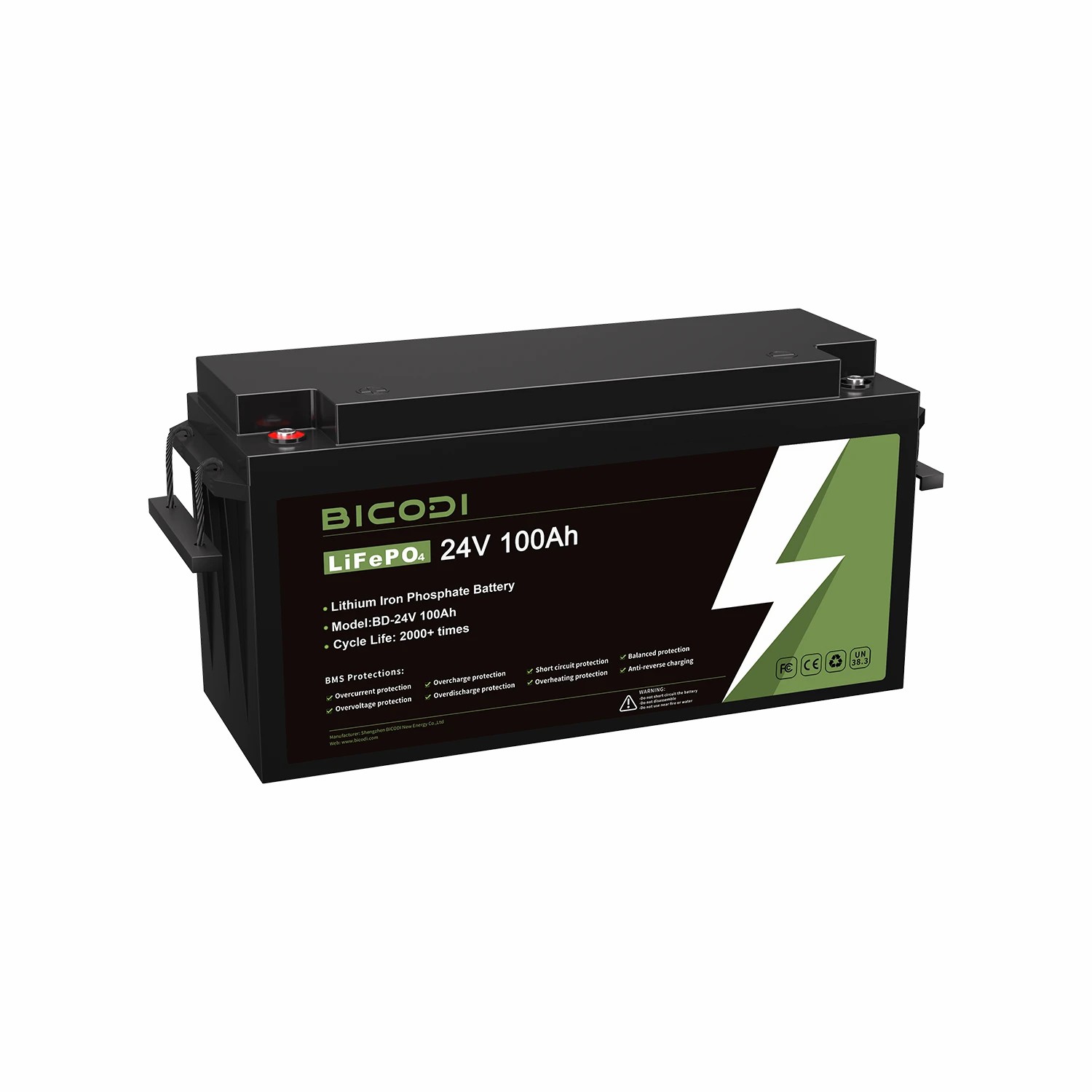

  • Model No: BD24-100
  • Battery Type: LifePO4 Battery
  • Voltage: 25.6V
  • Capacity: 100Ah
  • Warranty: 5-Years
  • Product Detail


    Product Tags

    LiFePO4 12V 100Ah Battery Pack

    Product Introduction

    1. High Energy Density: The BD24-100 phosphate iron lithium battery has a high energy density, making it compact and lightweight compared to traditional batteries, making it easy to install and carry.

    2. Long Lifespan: After rigorous testing, the BD24-100 battery has a lifespan of over 6000 cycles of charge and discharge, exhibiting high reliability and stability, thereby reducing replacement costs.

    3. Flexible Combination: It supports an unlimited number of series and parallel connections, allowing for personalized customization based on user needs and application scenarios, catering to diverse requirements.

    4. Wide Application: Suitable for scenarios such as home energy storage, commercial energy storage, solar energy storage, providing users with reliable and efficient energy storage solutions.



    5 Years

    Quality guarantee

    Built in BMS

    Eight major battery protection

    Single cell

    More stable and longer lifespan

    Lithium Battery

    cycle life


    What is the cycle life of the phosphate iron lithium battery you offer?

    Under normal operating conditions, our phosphate iron lithium battery can achieve a cycle life of over 2000 times, far exceeding traditional lead-acid batteries.

    Is this battery suitable for outdoor use?

    Yes, our phosphate iron lithium battery has high-temperature adaptability and strong environmental resistance, making it very suitable for outdoor use.

    Does this battery support fast charging? How long does it take to fully charge?

    Our phosphate iron lithium battery supports fast charging, and the charging time depends on the charger's power and the remaining battery power. Typically, it can be fully charged in 2-4 hours.

    How safe is this battery in a home energy storage system?

    Our phosphate iron lithium battery is equipped with a high-quality battery management system, which prevents overcharging, over-discharging, and short circuits, providing very reliable safety performance.

    What is the maintenance cost of this phosphate iron lithium battery compared to lead-acid batteries?

    Due to the longer cycle life and lower energy degradation of phosphate iron lithium batteries compared to traditional lead-acid batteries, the maintenance cost is lower, saving users more expenses.

  • Previous:
  • Next:

  • Model No: BD24-100
    Battery Type Lithium
    cell CBA54173200EES206Ah
    net weight 20kg
    gross weight 22kg
    size 483*170*240
    Package size 535*220*295
    protection grade IP65
    warranty Protection board for 1 year, with a 5-year warranty for the entire machine
    cell performance parameter
    cell capacity 2.56kWh
    available capacity 2.5kWh
    DOD 95%以上
    rated voltage 25.6V
    Operating voltage range 20 V~30V
    internal resistance <15mΩ
    cycle life 6000cls
    Operating mode
    Standard Charge & Discharge Current 50A
    Max Charging & Discharging Current 100A
    Discharge temperature range -20~60℃
    Storage Humidity ≤85%RH
    energy consumption ≤100uA
    monitored parameters Battery voltage, charging current, discharge current, charging temperature, discharge temperature, MOS temperature, pressure difference
    Protection function Overcharge protection, over discharge protection, charging overcurrent protection, discharge overcurrent protection, short circuit protection, charging high and low temperature protection, discharge high and low temperature protection, MOS high temperature protection, balance
    Maximum number of series connections 4
    Cooling method natural cooling
    safety certification UN38.3、MSDS、CE、CE、IEC62619
    parts list 2 copper noses, 2 screws
