Residential Energy Storage Lifepo4 Battery Wall mounted 5KW BD048100P05

Short Description:

Model BD48100P05 is a wall-mounted home energy storage with built-in BMS protection. Through MSDS, UN38.3 and other qualification certificates. It uses lifepo4 batteries, which are brand new grade A batteries with a capacity of 5.22Kwh, a long cycle life and a high state of health. With EU, US,UK and other specifications, with Wire socket, logo customization and many other services. photovoltaic energy storage can be applied to a variety of products such as household energy storage and photovoltaic energy storage. Wall mounted energy storage product design, interface with safety protection design and switch equipment, easy to install. Can meet our household electricity demand.

Basic Parameters

Name: BD048100P05

ominal voltage: 48v

Standard capacity: 105Ah lithium battery

battery type: Lifepo4

Output Waveform: Pure Sine Wave

Send email to us Datasheet Download

Product Detail

Product Parameters

Product Tags

DESCRIPTION

MULTIFUNCTIONAL OUTPUTS

1. Real-time monitoring: monitoring of battery discharge status, charging status, battery capacity, remaining time for discharge, charging current and voltage, temperature, and other parameters.

2. Remote control: remote real-time monitoring, remote parameter setting, remote control of charging and discharging, remote upgrading of the system software.

3. User-friendly design: easy to install, compact design, touch screen operation, visual display of all parameters, easy to read and understand user manual.

4. Warranty: long-term warranty and after-sales service, technical support from the manufacturer.

https://www.bicodi.com/bicodi-bd048100p05-solar-energy-storage-battery-product/

PRODUCT HIGHLIGHTS

5120Wh

Maximum capacity is 5120Wh Smaller volume gets more battery life

lilifepo4 battery

Super stable lilifepo4 lithium battery chemistry, 6000+ cycle life

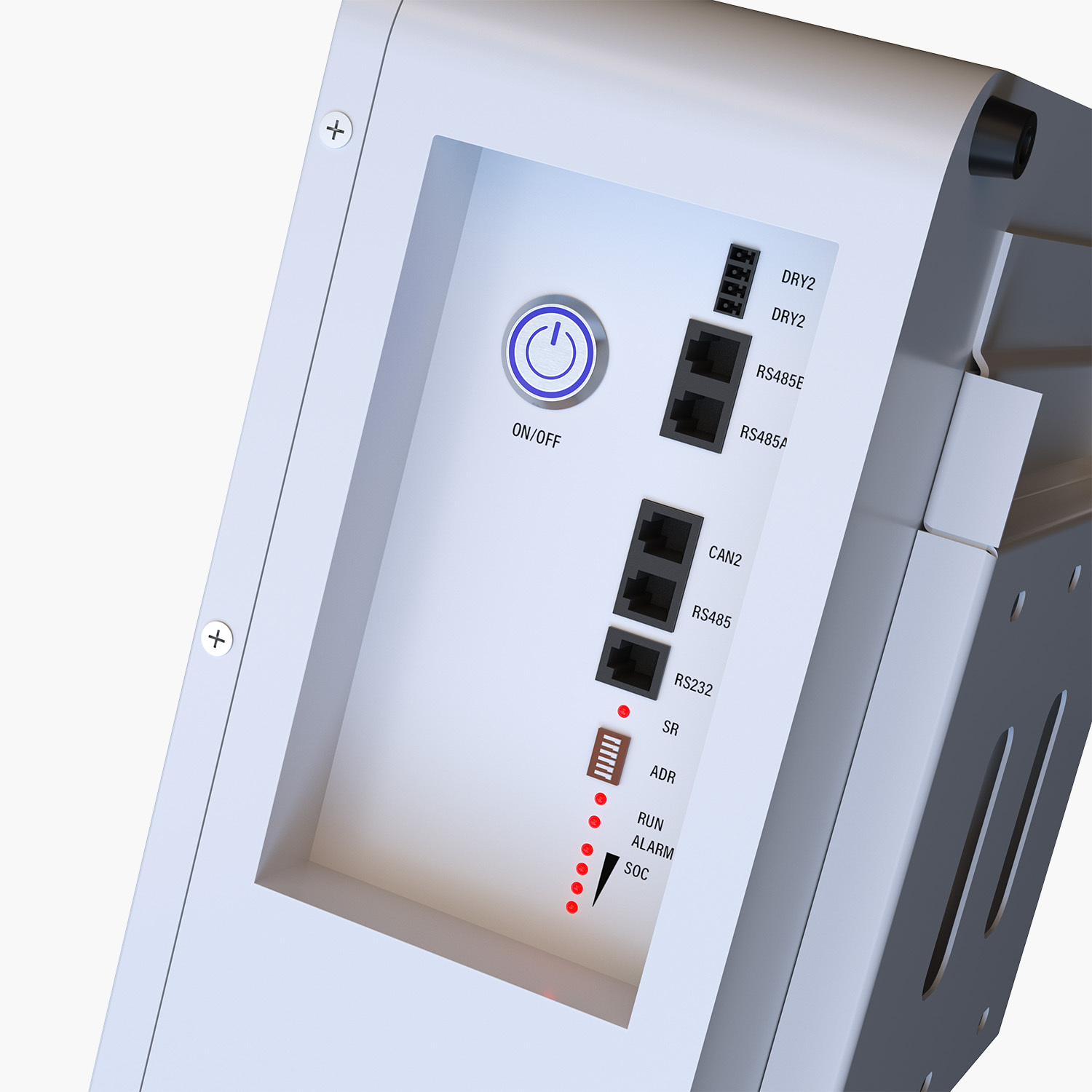

The communication

The communication interface is CAN/RS485

48V Base

Easy to measure: can be connected in parallel to 48V base

Wall mounted design

saves more space and is also beneficial for daily maintenance

Sheet metal shell

with longer service life and long-lasting suspension that is not easily deformed

BMS intelligent management system,

accurately control the number of charging and discharge of each battery cell, and monitor the battery life.

Class A battery cell

Use grade A brand new cells,long cycle life and higestate of health

PRODUCT DETAILS

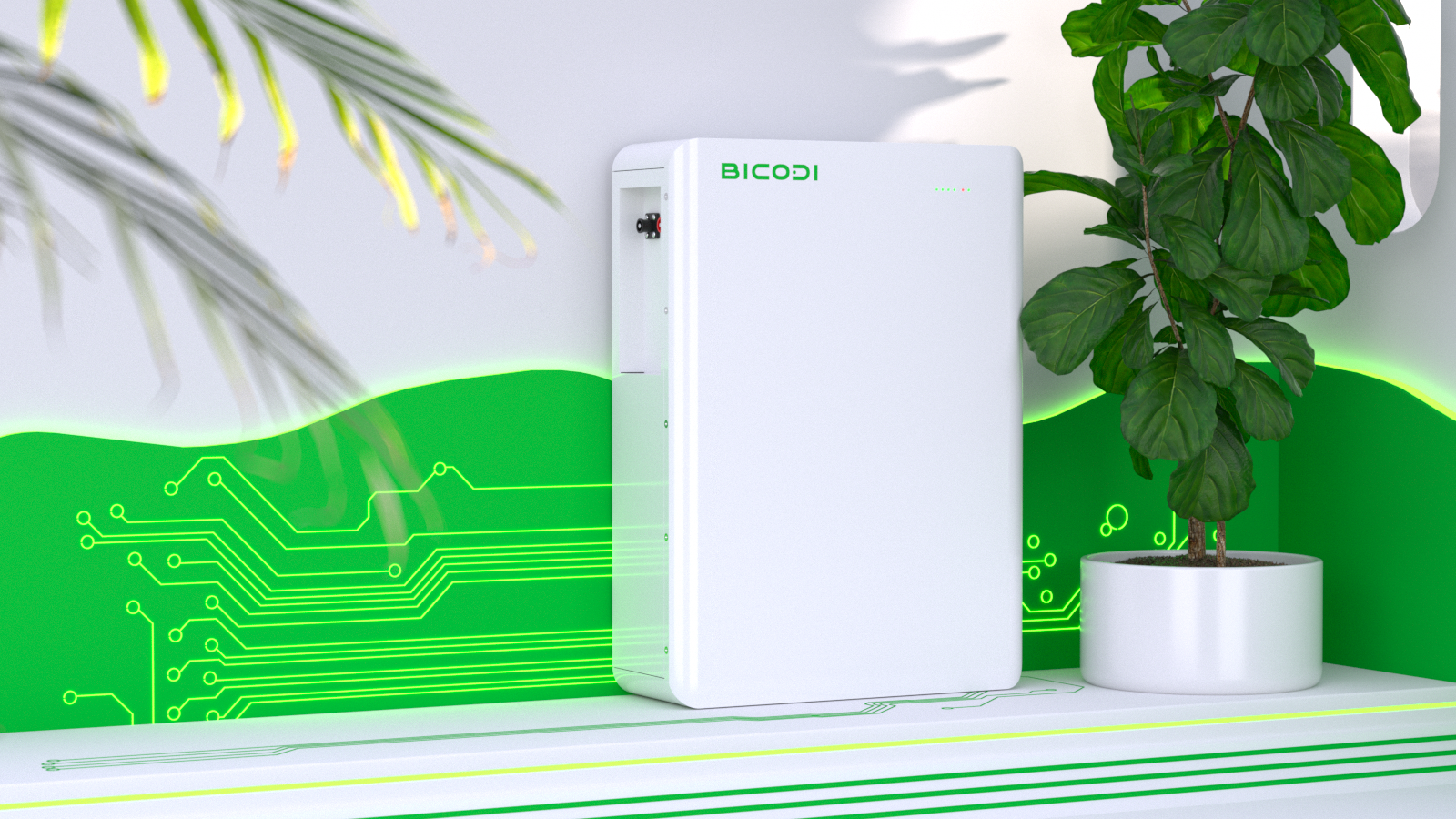

BD048100P05 Adopting a wall mounted design, it maximizes power support without affecting the use of your space. Our product adopts a full A category lithium-ion battery cell with a cycle life of up to 6000+times, and also supports a 10-year warranty to ensure your maximum rights.

BD048100P05 The wall mount is a 5kw household energy storage battery

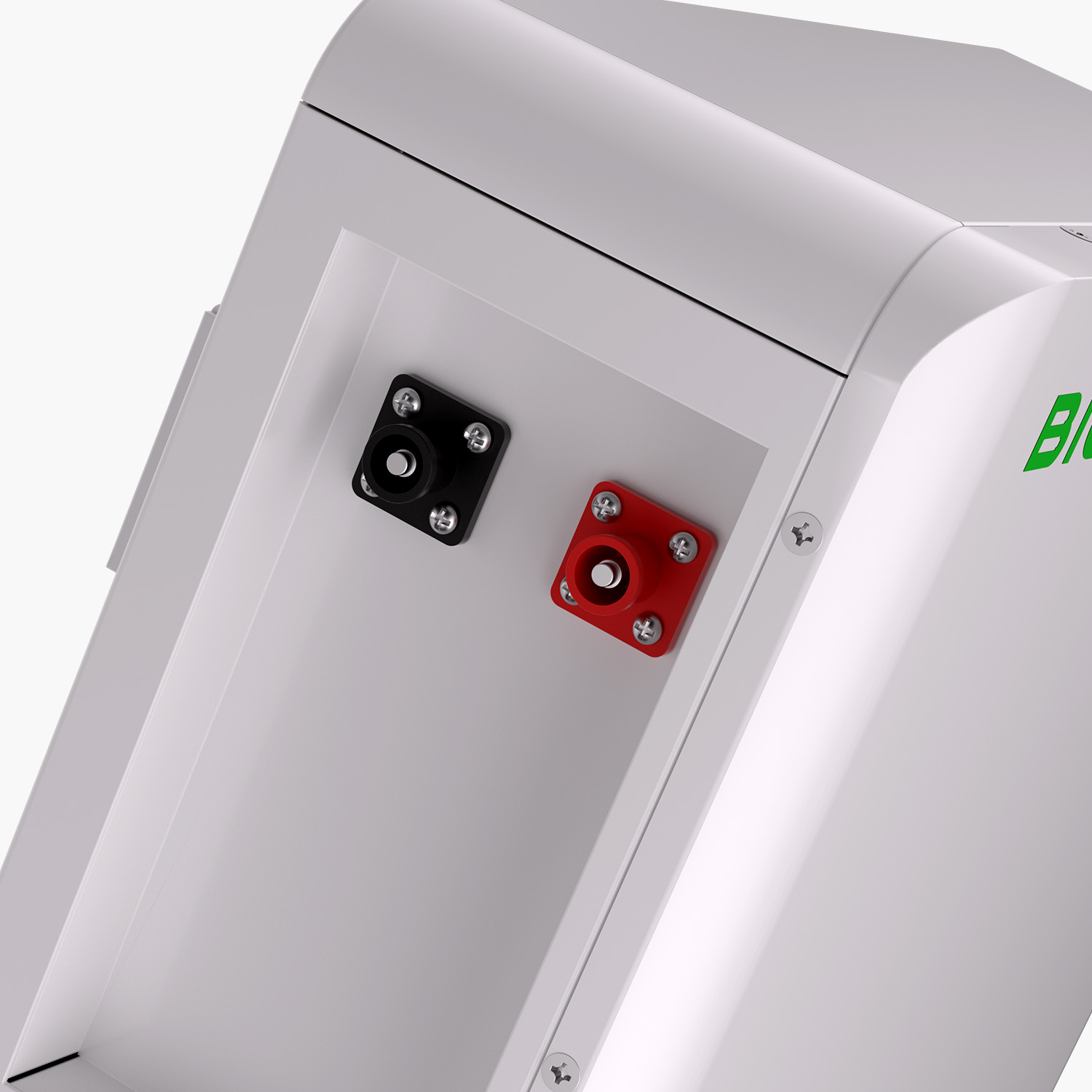

BD048100P05-Positive and negative electrode interface

FAQ FOR PORTABLE POWER STATION

More Q&A >>

What certificates do you have?

Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3, MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.

Do you offer OEM/OEM service?

Yes, we support OEM/ODM service, like logo customization or developing product function.

Which inverter brands are compatible with your batteries?

Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye, Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect...

More Q&A

Previous: BD048100L05 Residential Energy Storage System Stacked 5KW

Next: Wall mounted 10KW Residential Energy Storage Lifepo4 Battery BD048200P10

Model	BD048100P05
Battery Type	LiFePO4
Capacity	100AH
Weight	50KG
Dimension	443152603mm
IP Grade	IP21
Battery Max Charge&Discharge Continuous Power	5kw
DOD @25℃	＞90%
Rated Voltage	51.2V
Working Voltage Range	42V~58.4V
Designed Cycles Life	≥6000cls
Standard Continuous Charge & Discharge Current	0.6C(60A)
Max Charging Continuous & Discharging Current	100AH
Discharge Temperature Range	-10~50℃
Charging Temperature Range	0℃-50℃
Communication Mode	CAN,RS485
Compatible Inverter	Victron/ SMA / GROWATT / GOODWE/SOLIS/ DEYE/ SOFAR/ Voltronic /Luxpower More than 90% of the brands on the market
Maximum Number of Parallel	16
Cooling Mode	Natural Cooling
Warranty	10 Years
Certification	UN38.3、MSDS、CE、UL1973、IEC62619(Cell&Pack)
