BD48100R05

Short Description:

BD48100R05 U rack mounted energy storage battery adopts long-life and environment-friendly Lithium iron phosphate battery, and is equipped with high-performance BMS to effectively manage the battery cells. Compared with traditional batteries, it has more extensive performance and application advantages.

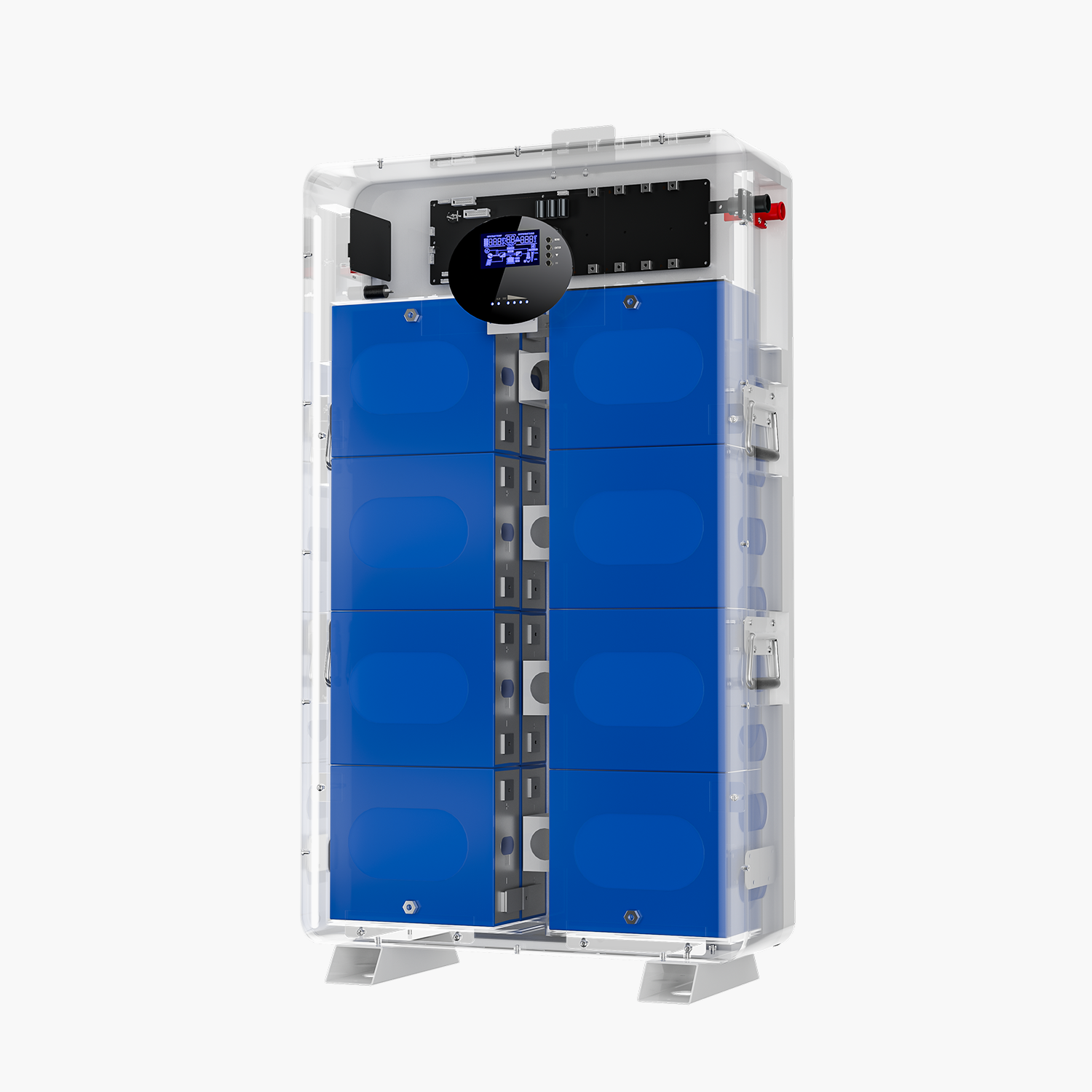

The battery used in this product is LFP 3.2V 102Ah, with a total of 16 cells used in series and parallel. The available capacity is 5.1KWh, the rated voltage is 51.2v, the Standard charge and discharge current is 50A, and the Max charge and discharge current is 100A. BMS protection has the following protection functions: Overall voltage protection, cell voltage protection, charge overcurrent protection, discharge overcurrent protection, short circuit protection, cell temperature protection, ambient temperature protection, MOS high performance protection, cell voltage difference protection, balanced function.
Rack mounted products are compatible with 90% of inverters on the market, such as Victron/SMA/GROWATT/GOODWE/
SOLIS/PLONTECH/DEYE/SODAR/SRNE/Voltronicpower/Luxpowertek/SORUIDE/Megarevo, ect. Supports off grid and grid connection. Easy to install, meeting the needs of the entire household’s energy storage system.

Sketch

Battery Capacity: 5Kwh
Life Cycles≥4000cls
Working voltage range: 42 V~58.4V
Standard charge and discharge current: 100A

Basic Parameters

Name: BD048100R05
Rated voltage:51.2V
Standard Capacity: Lithium iron phosphate (LFP)
Output Waveform:Pure Sine Wave

Send email to us Datasheet Download

Product Detail

Product Tags

5KWh Home Energy Storage System

Battery Cell	Lithium iron phosphate (LFP)
Weight	50kg
Dimension	442 * 562 * 145mm
Available capacity	5KWh
Rated voltage	51.2V
Cycle life	4000times
Standard charge and discharge current	50A
Max charge and discharge current	100A
BMS Protection	Overall voltage protection, cell voltage protection, charge overcurrent protection, discharge overcurrent protection, short circuit protection, cell temperature protection, ambient temperature protection, MOS high-temperature protection, cell voltage difference protection, balanced function
Maximum number of parallel machines	16
Cooling method	Natural cooling
Installation method	Stacked on the grond

Company Profile

Shenzhen Bicodi New Energy Co., Ltd., which was established in 2009, is a national high-tech enterprise focusing on the research and development, production, sales and service of battery energy storage products. After years of development, Bicodi has accumulated rich technical experience in the fields of lithium battery modules, BMS, and energy efficiency management, and has successfully applied it to product series such as portable power stations, home energy storage systems, and industrial& commercial energy storage systems. Based on the concept of independent innovation and development of green energy, Bicodi has developed and produced 300W to 5000W portable power stations and various household energy storage systems such as wall-mounted, stacked, and cabinet-type. The products are widely used in finance, electricity, education, securities,communications, pharmaceuticals, food,rail transit, aviation, smart cities, IoT, photovoltaics, industrial automation and other industries. Bicodi is committed to providing high-quality, clean, convenient energy solutions for global users.

Shenzhen Bicodi New Energy Co., Ltd., Our factory covers an area of over 20,000 square meters and has passed ISO9001 and ISO14001 certifications. The company pursues technology leadership and production process innovation, has established a complete R&D and quality assurance system, and strictly controls all processes from incoming materials to shipments. It adheres to the business service concept of quality first and customer first, and provides customers with a one-stop solution. Bicodi sticks to the bottom line of product quality and invests vigorously in product and technological innovation, strives to build a world-class green energy technology enterprise, and uses the power of technology to promote clean energy to become the world’s main energy.

Why Choose Us

Bicodi sticks to the bottom line of product quality and invests vigorously in product and technological innovation, strives to build aworld-class green energy technology enterprise, and uses the power of technology to promote clean energy to become the world’ smain energy.

Our Exhibitions

Packing & Delivery

FAQ

1.What brand of the battery cell do you ues?

EVE, Greatpower, Lisheng… are the mian brand we ues. As the shortage of cell market, we usually adopt the cell brand flexibly toensure the delivery time of customer orders. What we can promise to our customers is we ONLY use grade A 100% original new cellls.

2. How many year of your battery’s warranty?

All of our business partner can enjoy the longest warranty 10 years!

3. Which inverter brands are compatible with your batteries?

Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye,Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect…

4. How do you offer after-sales service to solve product problem？

We have professional engineers to provide technical service remotely. If our engineer diagnoses that the product parts or batteries are broken, we will provide a new part or battery to the customer free of charge immediately.

5. What certificates do you have?

Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3,MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.

6. How to prove your batteries are original new?

All of original new batteries have a QR code on them and people can track them by scaning the code. Used cell is no longer able to tracking the QR code, even no QR code on it.

7. How many low-voltage storage batteries can you connect in parallel?

Usually, max 16 LV energy batteries can be connect in parallel.

8. How does your battery communicate with the inverter?

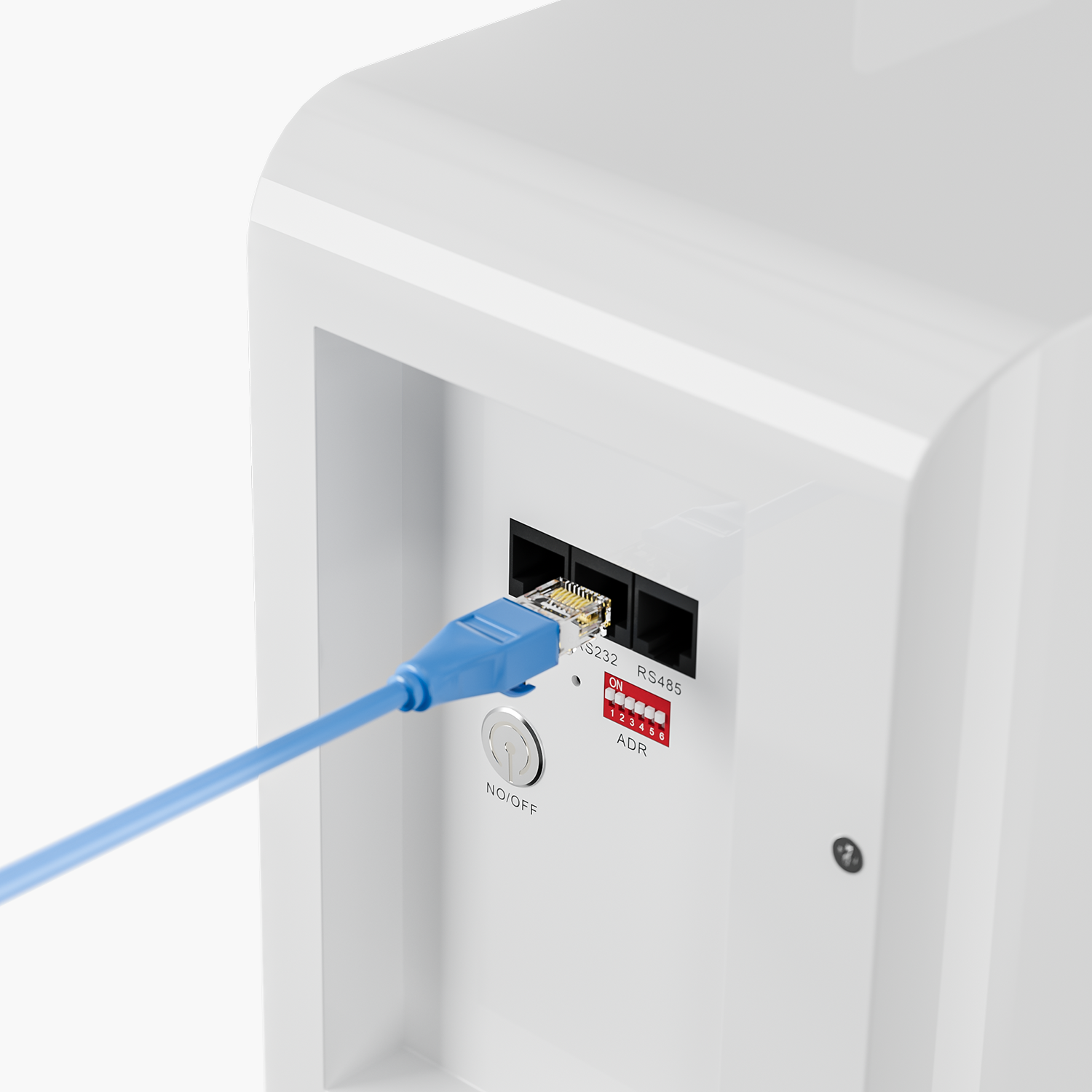

Our energy battery supports CAN and RS485 communication ways. CAN communication can match most of inverter brands.

9. What’s your delivery time?

Sample or trail order will take 3-7 working days; bulk order uaually will take 20-45 working days after payment.

10. What is the size and R&D strength of your company?

Our factory has been established since 2009 and we have an independent R&D team of 30 people. Most of our engineers have rich experience in research and development and used to serve the famous enterprises such as Growatt, Sofar,Goodwe, etc.

11. Do you offer OEM/OEM service?

Yes, we support OEM/ODM service, like logo customization or developing product function.

12. What is the difference between on-grid and off-grid?

On-Grid Systems tie directly to your utility grid, selling an alternative source of energy in addition to what your utility company provides.Off-grid systems do not tie to the utility grid and are sustained using a battery bank. The battery bank can be hooked up to an inverter, which converts DC voltage to AC voltage allowing you to use any AC appliances or electronics.
