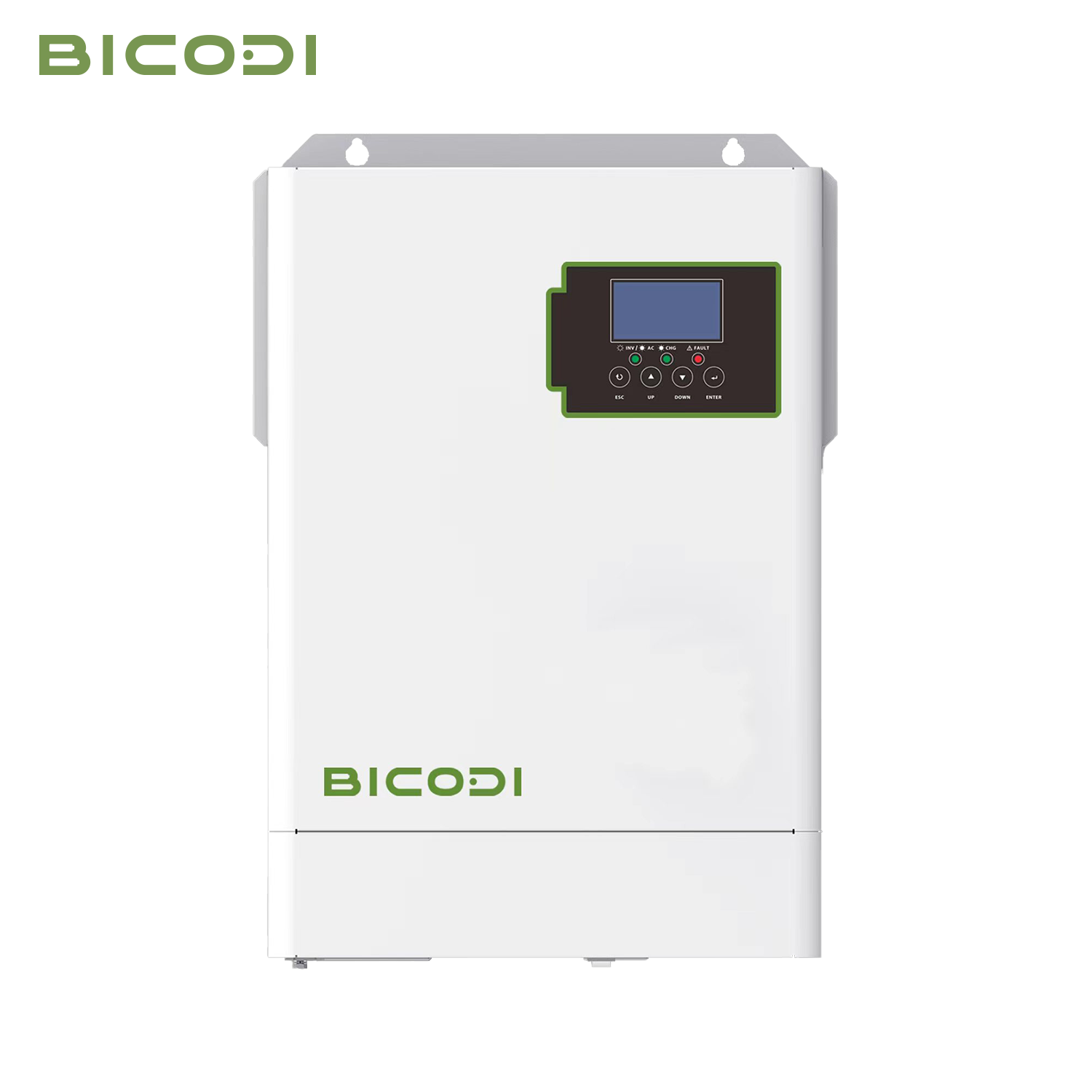

BD6200-48Li

Short Description:

The BD6200-4Li is a 6.2 kW inverter with a voltage support range of 60 to 500 volts DC, capable of supporting hybrid off-grid and grid-connected designs with a built-in 120A MPPT controller. Designed with flexibility and high efficiency in mind, this inverter is capable of different power demands and system configurations. Whether used alone or in combination with the grid, the BD6200-48Li provides reliable power conversion and management.

Basic Parameters

Name: BD6200-4Li

Battery Type: Lead-acid battery/Lithium battery/Custom battery

Rated Power: 6200W

Output voltage: 100V-220V

Communication: RS485 Communication / RS232 / Mobile APP (WIFl monitoring or GPRS monitoring)

Send email to us Datasheet Download

Product Detail

PARAMETER

Product Tags

DESCRIPTION

Product Features

Pure sine wave
Power factor 1.0
PV input Voltage 60Vdc-500Vdc
Built-in MPPT 120A
Lithium Battery Activation
Compatible work with LifePO4 Battery via RS485
Capable to work without battery
Detachable dust coverfor harsh environment
WiFiremote monitoring optional
Support multiple output priority: UTL,SOL,SBU,SUB
EQ function optimizes battery performance and lifespan

PRODUCT HIGHLIGHTS

RS232/RS485

MPPT 120A

PV 60-500Vdc

No Battery Mode

Lithium Battery Activation

High Efficiency

Pure Sine Wave

WIFI

PRODUCT DETAILS

Experience the ultimate in pure sine wave power efficiency and reliability with our Pure Sine Wave Inverter featuring a power factor of 1.0 and a PV input voltage range of 60Vdc-500Vdc, designed to maximize energy conversion and utilization.

Equipped with a built-in MPPT of 120A, this inverter ensures optimal power yield from solar panels. It is also equipped with Li-ion battery activation technology that allows easy integration of LifePO4 batteries via RS485 communication.

Not only can the inverter operate without batteries, it also offers a removable dust cover to protect the unit in harsh environments. The optional WiFiremote monitoring feature allows you to conveniently monitor and control the system remotely.

Supporting a variety of output priority settings, including UTL, SOL, SBU, and SUB, you can customize the power distribution to meet your specific needs with great flexibility. In addition, the EQ function optimizes battery performance and life, ensuring long-term reliability and efficiency.

Trust our pure sine wave inverters to provide seamless and reliable power generation in any environment.

FAQ FOR PORTABLE POWER STATION

Are you a factory or a trading company?

We are a manufacturer of solar panels and storage batteries. Like our long-term inverters, brackets, and accessories Partners. A complete certificate with competitive prices.

What is the delivery time?

It usually takes 10-15 days to prepare. We will update your information during the production process.

Can I install it myself?

Each section has installation instructions for easy installation. For connecting wire products, considering safety, we suggest that you find an electrician to help you.

What is the payment method?

We accept wire transfers to banks, Western Union transfers, and trade guarantees. Over $10000, a 30% deposit can be paid in advance, and the remaining 70% can be paid before shipment.

How is the after-sales service?

Damage during transportation will be resolved in accordance with the terms of the contract.
During the warranty period, if there are any issues with the product, our engineers

More Q&A

Previous: 1KW-8KW High Frequency Hybrid Inverter Solar photovoltaic panel household inverter

Next: 2000W Household Europe LiFePO4 Camping Emergency Solar Portable Power Station Generator For Laptop

MODEL	BD6200-48Li
Capacity	6.2KVA/6.2KW
Parallel Capability	NO
INPUT
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC(For personal Computer);90-280vac(For Home Appliances)
Frequency	50/60 Hz(Auto sensing)
OUTPUT
Nominal Voltage	220/230VAC+5%
Surge Power	12400VA
Frequency	50/60Hz
Waveform	Pure Sine wave
Transfer Time	10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency(PV to lNV)	96%
Peak Efficiency(Battery to lNV)	93%
Overload Protection	5s@>=140%load;10s@100%~140%load
Crest Factor	3:01
BATTERY	0.6~1(inductive or capacitive)
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
OverCharge Protection	63VDC
Charging Method	CC/CV
Lithium Battery Activation	YES
Lithim battery Communication	YES(RS485)
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Max.PV Array Power	6500W
Max.PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60VDC~500VDC
Max.Solar input Current	27A
Max.Solar Charge Current	120A
Max.AC Charge Current	80A
Max.Charge Current(PV+AC)	120A
PHYSICAL
Dimensions,DxWxH(mm)	448295121
Package Dimensions,DxWxH(mm)	540390210
Net Weight(kg)	8.7
communicationinterface	RS485+RS232
ENVIRONMENT
Operating Temperature Range	(-10℃~50℃)
Storage Temperature	(-15℃~50℃℃)
Humidity	5% to 95% Relative Humidity(Non-condensing)
