BD700A

Short Description:

BD700A is a portable battery generator. With the development of the times, people are more and more fond of traveling, hiking, and camping. At this time, camping power stations are becoming more and more popular in the market. BD70A is a high-energy-density battery, using a brand-new A-grade battery, with a product size of 305*202*190mm and a weight of 7.2kg;The size of the outer box is 350*270*290mm, and the weight is 8.4kg.
As an outdoor emergency power station, BD700A’s charging specifications include DC7909 Port, DC 10V～30V, A, 100W Max, mainly Wall Outlet (DC 24V/3.75A, 90W), Car Outlet (12V/24V, 100W) and Solar Panel (MPPT, 10V～30V) is the main one, followed by Type C Port, PD 60W Max (5V/9V/12V/15V/20V, 3A Max). Discharge specifications include USB Output, DC Output (Car Port: 12V 10A Max, 2xDC Output+Car Port: Total 120W), AC Output (Sine Wave: 110V/220V±10V, 50Hz/60Hz±3Hz, 700W max continuous, 1000W surge peak) these 3 ways. Among them, USB Output is divided into USB-A-1 (5V2.4A 12W (DCP, BC1.2, Apple2.4A, Samsung), USB-A-2 (5V2.4A 12W (DCP, BC1.2, Apple2.4A , Samsung), USB-A-3 (5～6.5V/3A 6.5～9V/2A 9～12V/1.5A 18W (QC3.0) and USB-C (5V3A 9V3A 12V3A 15V3A 20V3A 60W (PD3.0).

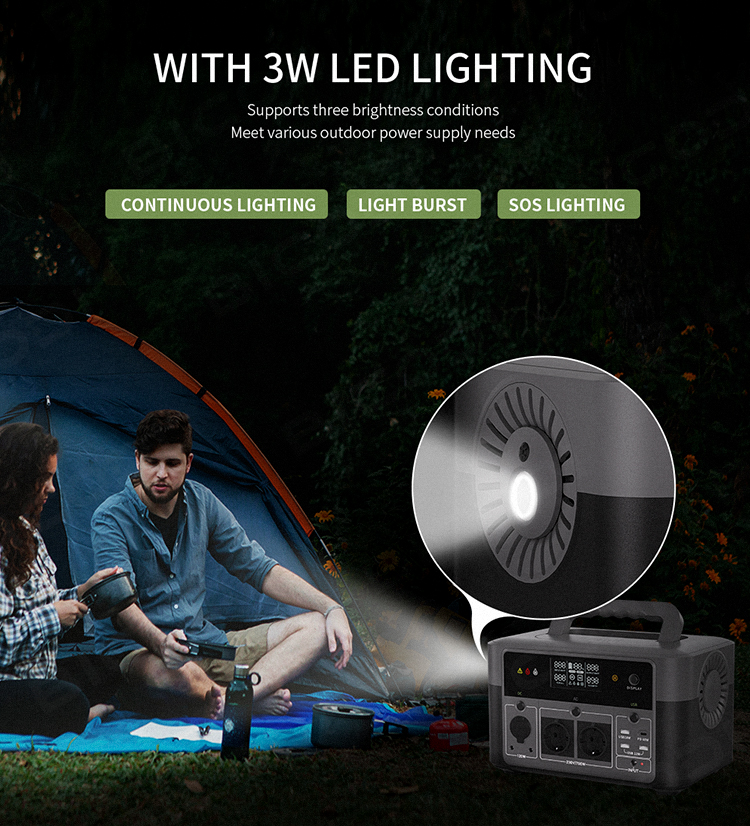

In addition, BD700A has LED Light (3W Light/SOS/Flashing), Recharging Temperature at 0~50℃, Operating Temperature at -20~60℃, Cycle Life up to 500 times, with UL, CE, FCC, RoHS, PSE, MSDS, UN38.3 and other safety certifications, it is an outdoor emergency power station with high stability. Secondly, BD700A also has six safety protection functions, including Over voltage protection, Low voltage protection, Discharge over current protection, Short circuit protection, Charge over current protection, temperature protection. If you buy our portable battery, you will get the following 4 accessories: Portable power station, AC power adapter, Car Charger and User Manual.

Sketch

Massive capacity 710.4Wh
1000W surge peak

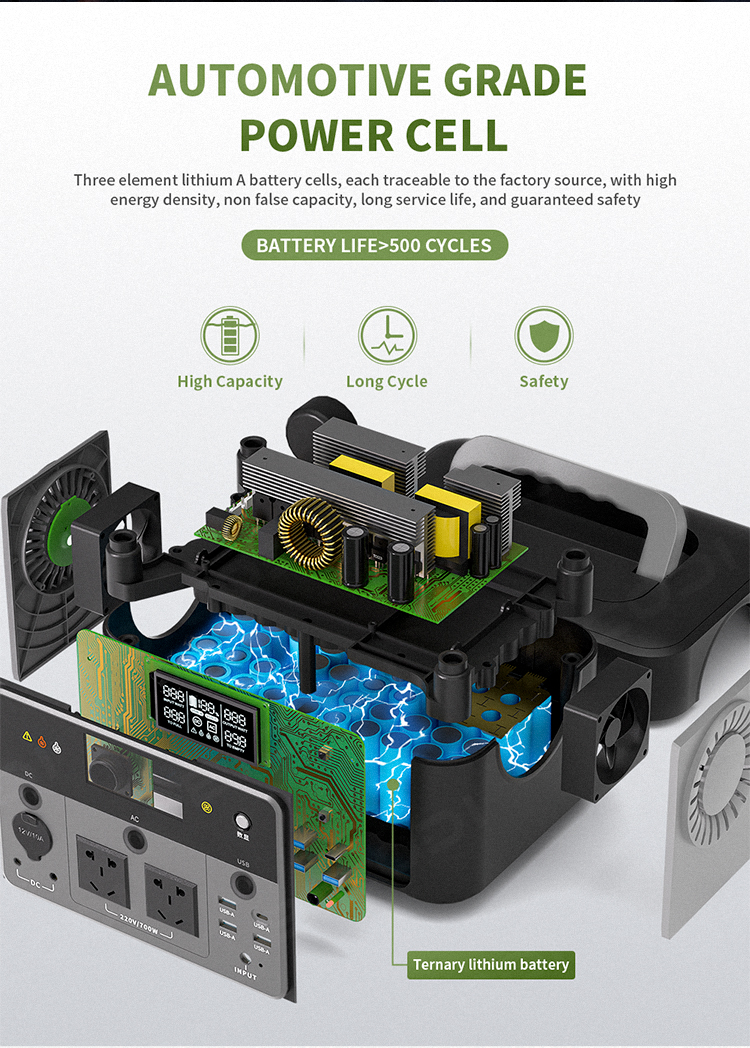

Chemical characteristics of Super stable 21700 lithium ion NMC battery with 500+ cycle life

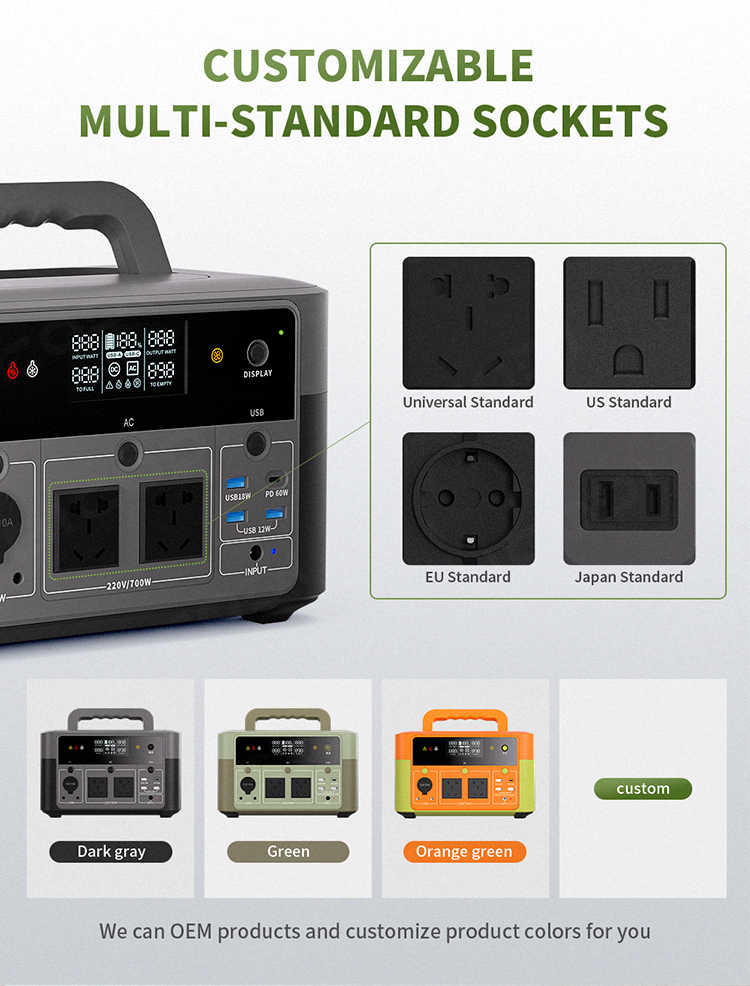

1*110V-230V AC Outlets, 1*60W PD Ports, 2*5V/3A USB-A Ports, 2*Regulated 12V/10A DC Outputs, 1*12V/10A Car Port,1*18W QC3.0 fast charging.
Maximum input 100W, BD700A can be fully charged in 3-4 hours(OCV12-30V, 100W)

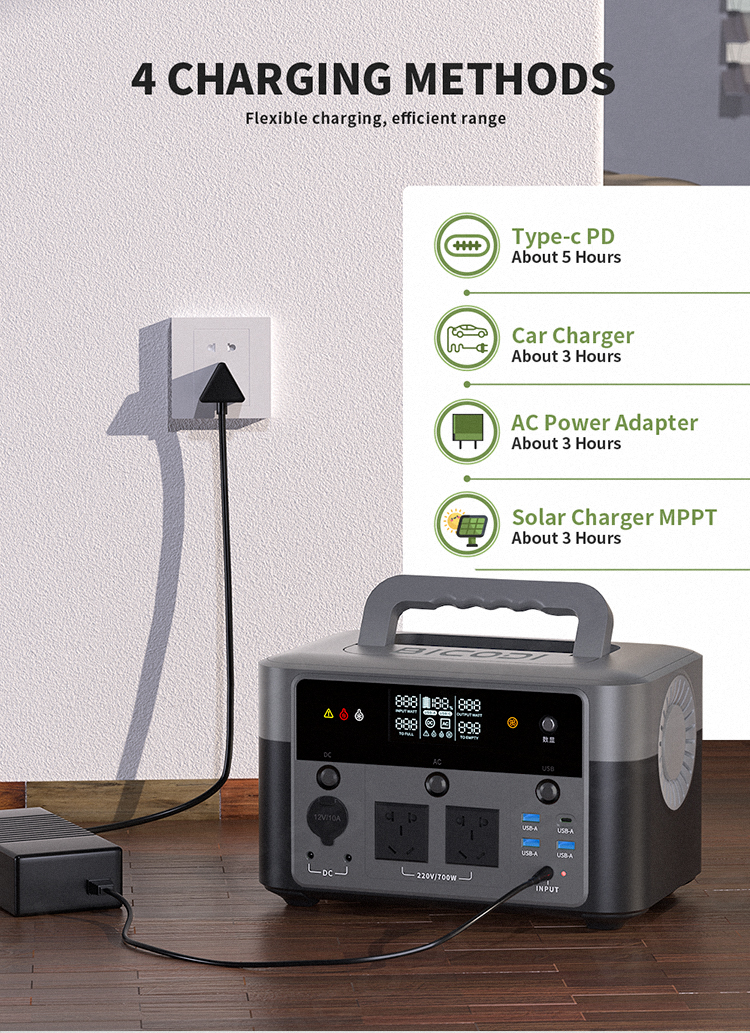

Support AC wall plug, can be in 3 to 4 hours to charge, or in the shortest possible with 12V car port within 3 hours

Basic Parameters

Name:BD-700A
Rated Power:700W
Standard Capacity:21700 Lithium-ion Battery 3.6V 4000mAh 6S8P
Output Waveform:Pure Sine Wave

Send email to us Datasheet Download

Product Detail

Product Tags

Case Material	ABS/PP
Cell Chemistry	21700 Li-ion NMC
Capacity	710.4Wh 22.2V 32Ah (3.7V 4000mAh 6S8P)
Charging Time	2 hours
Input	power adapter (DC 24V/2.5A,60W) Car charger (12V/24V，100W Max) Solar Panels Charger (MPPT，10V～30V 100W Max) Type-C PD 60W Max
Output	DC/Cigarette Lighter (9-12.6V 10A) USB-A (5V2.4*2+QC3.0 18W) USB-C (PD60W)+24W AC Pure Sine Wave 110-220V 50Hz 300W max
Product Size	L285W138H182mm
Operating Usage Temperature	-20°C~60°C
Flash Light	3W
Colors	Black / Customized Color
Lifecycle	500 cycles to 80%+ capacity
Standard Accessories	1 user manual +1 DC adapter+1 car charging cable

Company Profile

Shenzhen Bicodi New Energy Co., Ltd., which was established in 2009, is a national high-tech enterprise focusing on the research and development, production, sales and service of battery energy storage products. After years of development, Bicodi has accumulated rich technical experience in the fields of lithium battery modules, BMS, and energy efficiency management, and has successfully applied it to product series such as portable power stations, home energy storage systems, and industrial& commercial energy storage systems. Based on the concept of independent innovation and development of green energy, Bicodi has developed and produced 300W to 5000W portable power stations and various household energy storage systems such as wall-mounted, stacked, and cabinet-type. The products are widely used in finance, electricity, education, securities,communications, pharmaceuticals, food,rail transit, aviation, smart cities, IoT, photovoltaics, industrial automation and other industries. Bicodi is committed to providing high-quality, clean, convenient energy solutions for global users.

Shenzhen Bicodi New Energy Co., Ltd., Our factory covers an area of over 20,000 square meters and has passed ISO9001 and ISO14001 certifications. The company pursues technology leadership and production process innovation, has established a complete R&D and quality assurance system, and strictly controls all processes from incoming materials to shipments. It adheres to the business service concept of quality first and customer first, and provides customers with a one-stop solution. Bicodi sticks to the bottom line of product quality and invests vigorously in product and technological innovation, strives to build a world-class green energy technology enterprise, and uses the power of technology to promote clean energy to become the world’s main energy.

Why Choose Us

Bicodi sticks to the bottom line of product quality and invests vigorously in product and technological innovation, strives to build aworld-class green energy technology enterprise, and uses the power of technology to promote clean energy to become the world’ smain energy.

Our Exhibitions

Packing & Delivery

FAQ

1.What brand of the battery cell do you ues?

EVE, Greatpower, Lisheng… are the mian brand we ues. As the shortage of cell market, we usually adopt the cell brand flexibly toensure the delivery time of customer orders. What we can promise to our customers is we ONLY use grade A 100% original new cellls.

2. How many year of your battery’s warranty?

All of our business partner can enjoy the longest warranty 10 years!

3. Which inverter brands are compatible with your batteries?

Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye,Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect…

4. How do you offer after-sales service to solve product problem？

We have professional engineers to provide technical service remotely. If our engineer diagnoses that the product parts or batteries are broken, we will provide a new part or battery to the customer free of charge immediately.

5. What certificates do you have?

Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3,MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.

6. How to prove your batteries are original new?

All of original new batteries have a QR code on them and people can track them by scaning the code. Used cell is no longer able to tracking the QR code, even no QR code on it.

7. How many low-voltage storage batteries can you connect in parallel?

Usually, max 16 LV energy batteries can be connect in parallel.

8. How does your battery communicate with the inverter?

Our energy battery supports CAN and RS485 communication ways. CAN communication can match most of inverter brands.

9. What’s your delivery time?

Sample or trail order will take 3-7 working days; bulk order uaually will take 20-45 working days after payment.

10. What is the size and R&D strength of your company?

Our factory has been established since 2009 and we have an independent R&D team of 30 people. Most of our engineers have rich experience in research and development and used to serve the famous enterprises such as Growatt, Sofar,Goodwe, etc.

11. Do you offer OEM/OEM service?

Yes, we support OEM/ODM service, like logo customization or developing product function.

12. What is the difference between on-grid and off-grid?

On-Grid Systems tie directly to your utility grid, selling an alternative source of energy in addition to what your utility company provides.Off-grid systems do not tie to the utility grid and are sustained using a battery bank. The battery bank can be hooked up to an inverter, which converts DC voltage to AC voltage allowing you to use any AC appliances or electronics.
