700W Power Station Portable Solar Generator Camping For Wholesales Featured Image

BD1200A

Short Description:

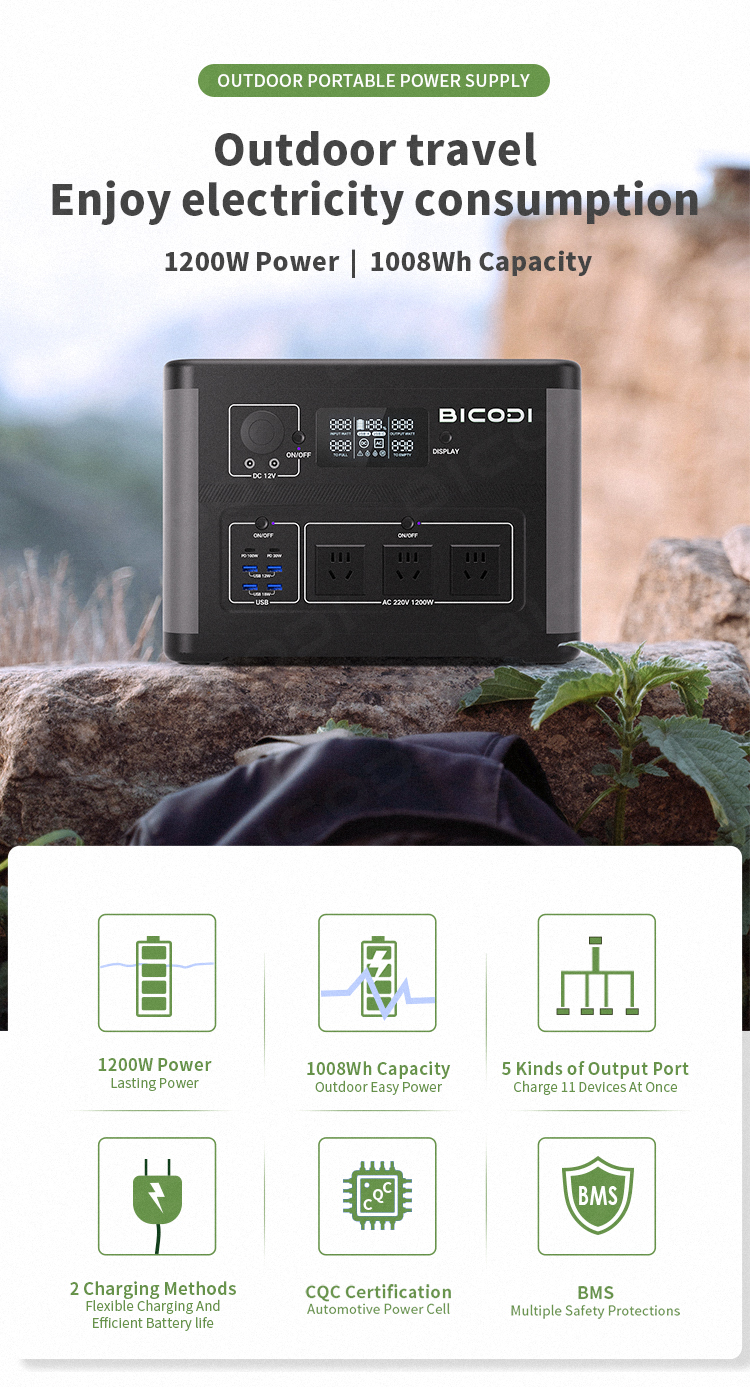

BD1200W is a PowerStation supply with energy storage function, suitable for applications such as home emergency backup, outdoor travel, emergency rescue, and field operations. This product includes integrated lithium batteries. It is designed as a 7-series iron lithium battery with a voltage of 224VCC (7 * 3.2V), an AC output inverter, and a pure sine wave of 220V (50/60Hz). Output waveform, AC input, solar input MPPT. Multiple DC output ports, including USB QC3.0 and Type-C, as well as car lighter interfaces.
The maximum capacity of this product is 1008Wh. The maximum stable load power of the AC input port is 1000W. High stability LiFePO4 lithium battery, with a service life of>2000 cycles. The maximum charging input voltage is 36V, which is compatible with various charging methods such as car chargers and solar panels. Solar charging MPPT, capable of supporting up to 500W of solar charging. Load voltage of load input port is constant XT60 ≤ 0.05C Saturation current control.

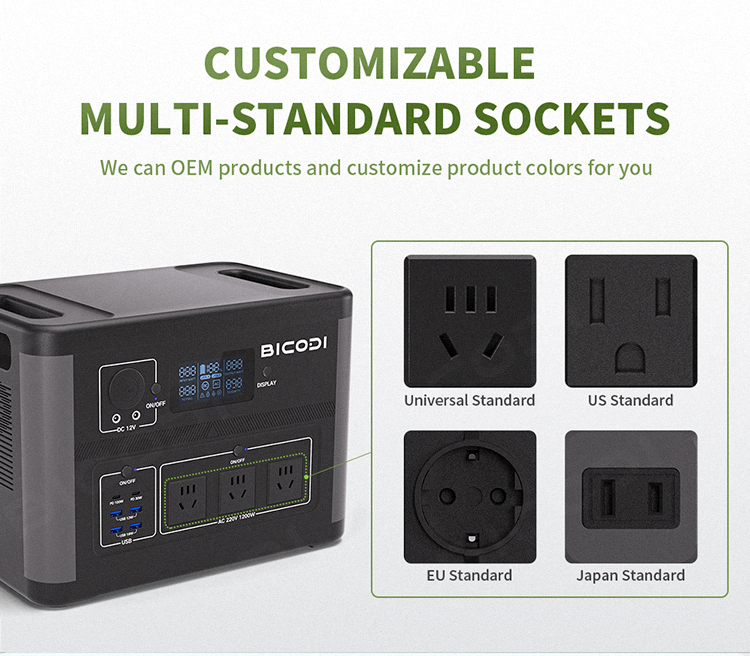

Capable of providing customized services, supporting 110V-230V output, with EU/US/JP specifications, meeting the power supply requirements and socket specifications of various countries.

Sketch

Massive Capacity 1075Wh.
The maximum stable load power of the AC input port is 1000W.

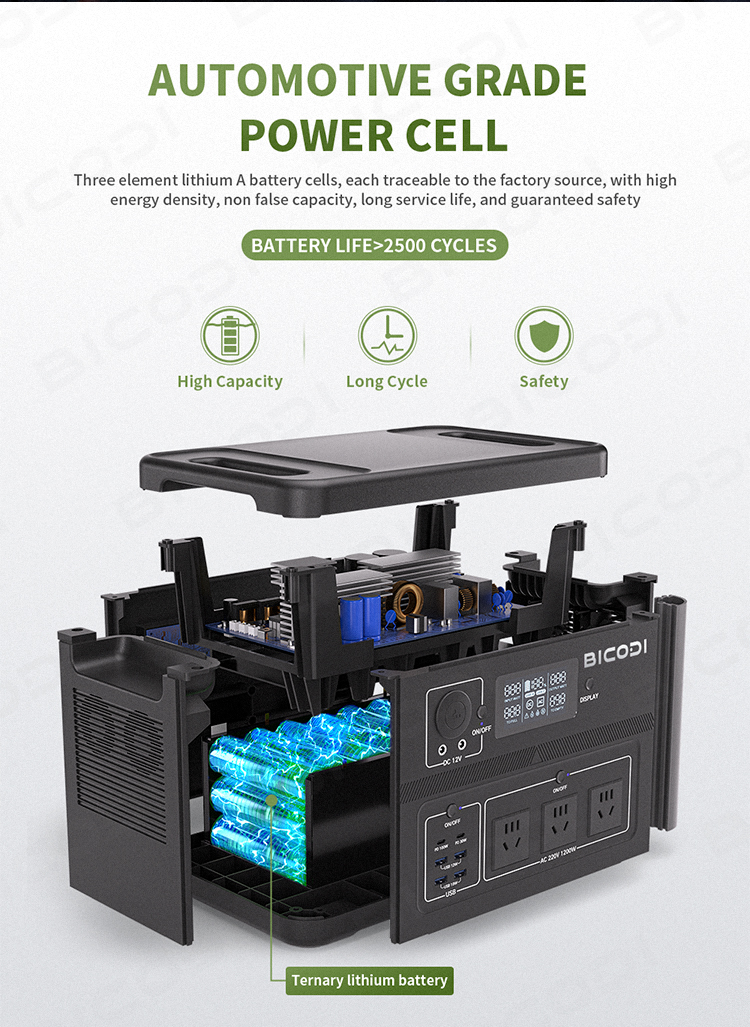

Highly stable LiFePO4 lithium battery with a lifespan of>2000 cycles.

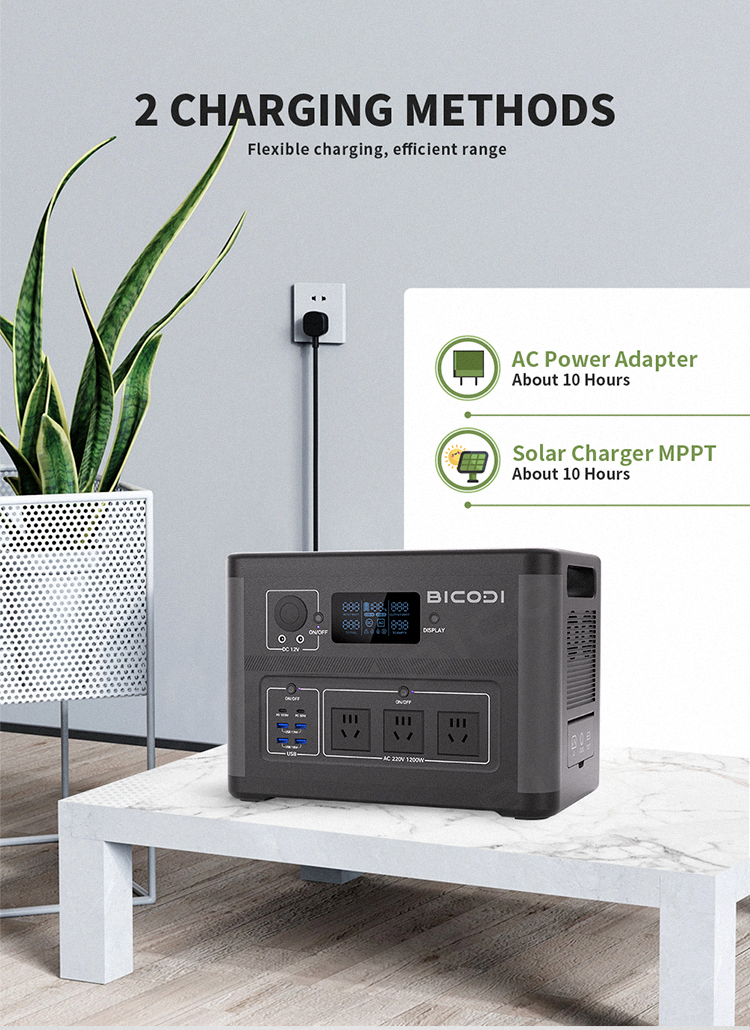

The maximum charging input voltage is 36V, which is compatible with various charging methods such as car chargers and solar panels.
Solar charging MPPT, capable of supporting up to 400W solar charging.
Constant load voltage of load input port XT60 ≤ 0.05C saturation current control.

Basic Parameters

Name : BD-1200W-P
Battery Capacity : 1200Wh/25V/48Ah
Battery Cel l: LiFePO4 Cells/48Ah
XT60 Input : Support Car Charging&Solar Charging, 400W Max

Send email to us Datasheet Download

Product Detail

Product Tags

Output

XT60 Port DC 10V~35V,200W Max

Car Outlet

12V 8A Max

Solar Panel

MPPT, 10V~35V, 200W Max

AC Port

AC Charge

100-240Vac~50/60Hz, 800W Max

Output

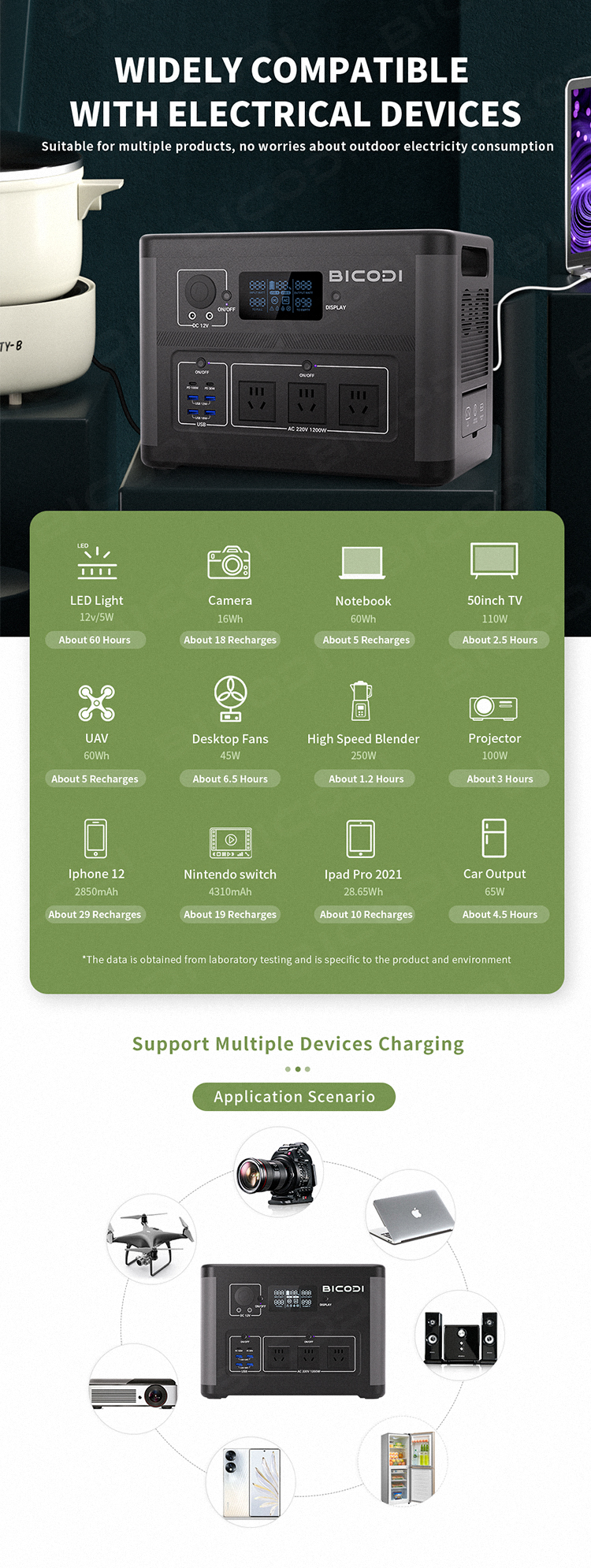

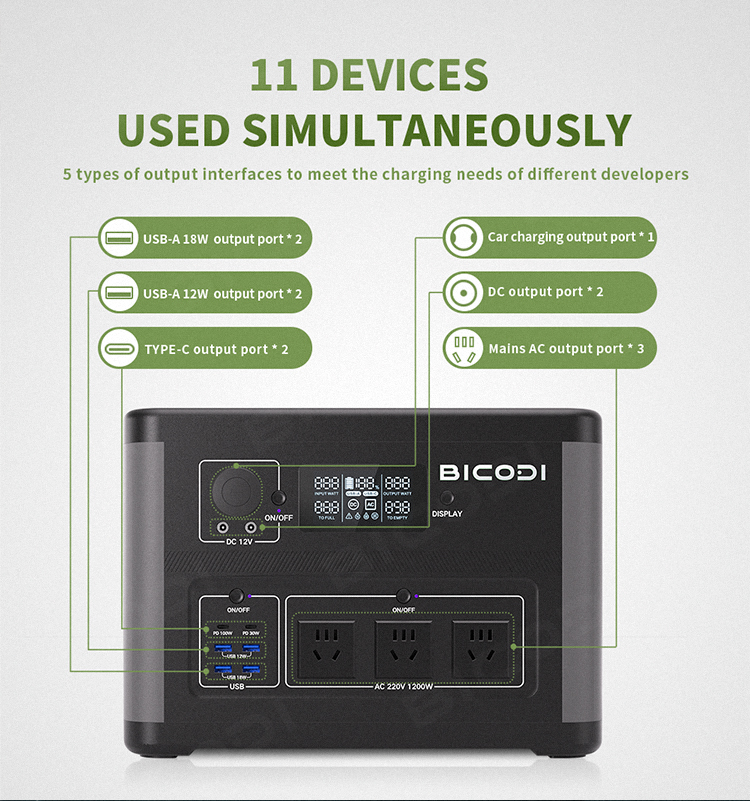

USB Output

USB-A-1

5V2.4A 12W (DCP,BC1.2,Apple2.4A,Samsung)

USB-A-2

5V2.4A 12W (DCP,BC1.2,Apple2.4A,Samsung)

USB-A-3

5~6.5V/3A 6.5~9V/2A 9~12V/1.5A 18W (QC3.0)

USB-A-4

5~6.5V/3A 6.5~9V/2A 9~12V/1.5A 18W (QC3.0)

USB-C-1

5V3A 9V3A 12V2.5A 15V2A 20V1.5A 30W (PD3.0)

USB-C-2

5V3A 9V3A 12V3A 15V3A 20V5A 100W (PD3.0)

DC Output

DC5521*2

12V 10A Max
2xDC Output+Car Port:Total 120W

Car Port

AC Output

Sine Wave

220V±10V,50Hz±3Hz
1200W max continuous
1500W surge peak

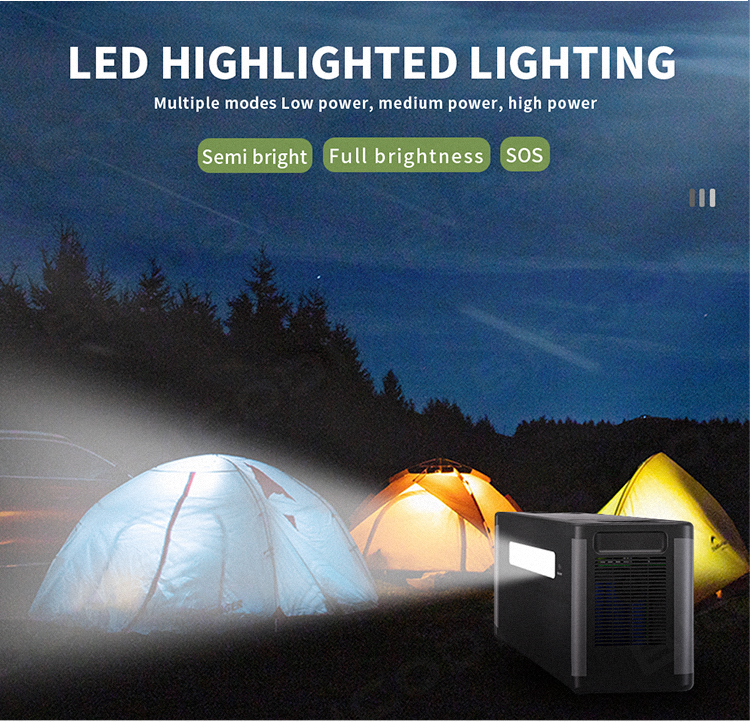

LED Light

15W LED

Recharging Temperature

0~60℃

Operating Temperature

-10~60℃

Cycle Life

>2500次
2500 times

Safety Certification

CE,FCC,RoHS,PSE,MSDS,UN38.3

Battery Protections

a.Over voltage protection
b.Low voltage protection
c.Discharge over current protection
d.Short circuit protection
e.Charge over current protection
f.Temperature protection

Company Profile

Shenzhen Bicodi New Energy Co., Ltd., which was established in 2009, is a national high-tech enterprise focusing on the research and development, production, sales and service of battery energy storage products. After years of development, Bicodi has accumulated rich technical experience in the fields of lithium battery modules, BMS, and energy efficiency management, and has successfully applied it to product series such as portable power stations, home energy storage systems, and industrial& commercial energy storage systems. Based on the concept of independent innovation and development of green energy, Bicodi has developed and produced 300W to 5000W portable power stations and various household energy storage systems such as wall-mounted, stacked, and cabinet-type. The products are widely used in finance, electricity, education, securities,communications, pharmaceuticals, food,rail transit, aviation, smart cities, IoT, photovoltaics, industrial automation and other industries. Bicodi is committed to providing high-quality, clean, convenient energy solutions for global users.

Shenzhen Bicodi New Energy Co., Ltd., Our factory covers an area of over 20,000 square meters and has passed ISO9001 and ISO14001 certifications. The company pursues technology leadership and production process innovation, has established a complete R&D and quality assurance system, and strictly controls all processes from incoming materials to shipments. It adheres to the business service concept of quality first and customer first, and provides customers with a one-stop solution. Bicodi sticks to the bottom line of product quality and invests vigorously in product and technological innovation, strives to build a world-class green energy technology enterprise, and uses the power of technology to promote clean energy to become the world’s main energy.

Why Choose Us

Bicodi sticks to the bottom line of product quality and invests vigorously in product and technological innovation, strives to build aworld-class green energy technology enterprise, and uses the power of technology to promote clean energy to become the world’ smain energy.

Our Exhibitions

Packing & Delivery

FAQ

1.What brand of the battery cell do you ues?

EVE, Greatpower, Lisheng… are the mian brand we ues. As the shortage of cell market, we usually adopt the cell brand flexibly toensure the delivery time of customer orders. What we can promise to our customers is we ONLY use grade A 100% original new cellls.

2. How many year of your battery’s warranty?

All of our business partner can enjoy the longest warranty 10 years!

3. Which inverter brands are compatible with your batteries?

Our batteries can match with 90% different inverter brand of the market, such as Victron, SMA, GoodWe, Growatt, Ginlong, Deye,Sofar Solar, Voltronic Power,SRNE, SoroTec Power, MegaRevo, ect…

4. How do you offer after-sales service to solve product problem？

We have professional engineers to provide technical service remotely. If our engineer diagnoses that the product parts or batteries are broken, we will provide a new part or battery to the customer free of charge immediately.

5. What certificates do you have?

Different country have different certificates standard. Our battry can meet CE, CB, CEB, FCC, ROHS, UL, PSE, SAA, UN38.3,MSDA,IEC, etc… Please tell our sales what certificate you need when sending inquiry to us.

6. How to prove your batteries are original new?

All of original new batteries have a QR code on them and people can track them by scaning the code. Used cell is no longer able to tracking the QR code, even no QR code on it.

7. How many low-voltage storage batteries can you connect in parallel?

Usually, max 16 LV energy batteries can be connect in parallel.

8. How does your battery communicate with the inverter?

Our energy battery supports CAN and RS485 communication ways. CAN communication can match most of inverter brands.

9. What’s your delivery time?

Sample or trail order will take 3-7 working days; bulk order uaually will take 20-45 working days after payment.

10. What is the size and R&D strength of your company?

Our factory has been established since 2009 and we have an independent R&D team of 30 people. Most of our engineers have rich experience in research and development and used to serve the famous enterprises such as Growatt, Sofar,Goodwe, etc.

11. Do you offer OEM/OEM service?

Yes, we support OEM/ODM service, like logo customization or developing product function.

12. What is the difference between on-grid and off-grid?

On-Grid Systems tie directly to your utility grid, selling an alternative source of energy in addition to what your utility company provides.Off-grid systems do not tie to the utility grid and are sustained using a battery bank. The battery bank can be hooked up to an inverter, which converts DC voltage to AC voltage allowing you to use any AC appliances or electronics.
